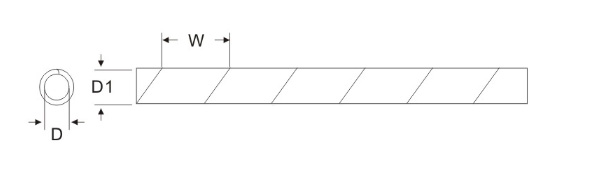

| ITEM NO. | I.D | Outside Diameter | Pitch | WRAPPING RANGE |
| MM | MM | MM | MM | |
| HC-6 | 4 | 6 | 7.0 | 4×50 |
| HC-8 | 6 | 8 | 10.8 | 6X60 |
| HC-10 | 7.5 | 10 | 11.4 | 7.5X60 |
| HC-12 | 9 | 12 | 13.9 | 9X65 |
| HC-16 | 13 | 16 | 15.0 | 12X70 |
| HC-20 | 16 | 20 | 18.2 | 15X100 |
| HC-25 | 21 | 25 | 19.6 | 20X130 |

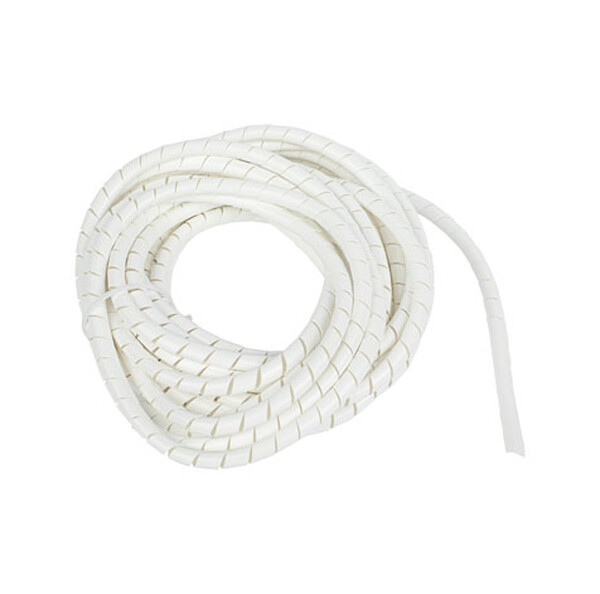

Spiral Wrapping Band
- Material: PE.
- Color: White, and another color available.
- Package: 10m.

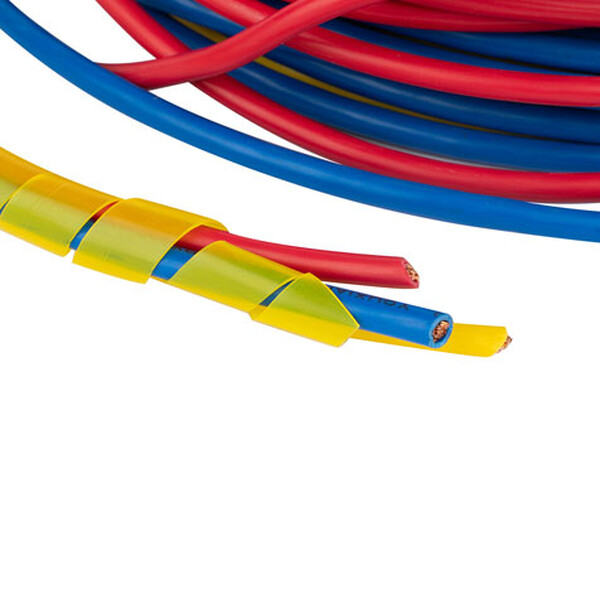

- Usage: fix one end with a safety belt first, then circle the wires clockwise to make them tighten.
- Application: a protection wears for electrical tape wire nuts, and make them insulation and look nice.
- This product can be customized produced by requirement.
