PVC Wiring Ducts

PVC Wiring Ducts

Product material: Modified PVC
Fire resistance rating: UL94-V0
Color: Gray
Operating temperature: Static -40°C, continuous high temperature up to 85°C, short-term up to 110°C
Product certifications: CE, RoHS, asbestos-free
Features: High temperature resistance , insulation, arc protection, flame retardant and self-extinguishing

Category: Cable Accessories

Description

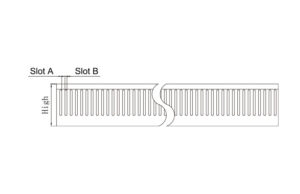

Diagram showing dimensions of rectangle

TYPE(Width*high mm)	High/mm	Width/mm	SlotA/mm	SlotB/mm	Thickness/mm
PXC3-20*20	20	20	6	4	1
PXC3-20*25	20	25	6	4	1
PXC3-25*25	25	25	6	4	1
PXC3-25*50	25	50	6	4	1
PXC3-30*15	30	15	6	4	1
PXC3-30*20	30	20	6	4	1.1
PXC3-30*25	30	25	6	4	1.2
PXC3-30*30	30	30	6	4	1.2
PXC3-30*35	30	35	6	4	1.2
PXC3-30*40	30	40	6	4	1.3
PXC3-35*25	35	25	6	4	1.3
PXC3-35*30	35	30	6	4	1.3
PXC3-35*35	35	35	6	4	1.3
PXC3-35*40	35	40	6	4	1.3
PXC3-40*25	40	25	6	4	1.35
PXC3-40*30	40	30	6	4	1.35
PXC3-40*35	40	35	6	4	1.35
PXC3-40*40	40	40	6	4	1.45
PXC3-40*60	40	60	6	4	1.5
PXC3-45*25	45	25	6	4	1.35
PXC3-45*33	45	33	6	4	1.35
PXC3-45*45	45	45	6	4	1.35
PXC3-50*25	50	25	6	4	1.4
PXC3-50*30	50	30	6	4	1.5
PXC3-50*35	50	35	6	4	1.5
PXC3-50*40	50	40	6	4	1.5
PXC3-50*45	50	45	6	4	1.5
PXC3-50*50	50	50	6	4	1.5
PXC3-50*55	50	55	6	4	1.55
PXC3-50*60	50	60	6	4	1.55
PXC3-50*80	50	80	6	4	1.7
PXC3-50*100	50	100	6	4	1.7
PXC3-60*25	60	25	6	4	1.5
PXC3-60*35	60	35	6	4	1.5
PXC3-60*40	60	40	6	4	1.6
PXC3-60*45	60	45	6	4	1.5
PXC3-60*50	60	50	6	4	1.5
PXC3-60*60	60	60	6	4	1.6
PXC3-60*80	60	80	6	4	1.8
PXC3-65*25	65	25	6	4	1.5
PXC3-65*33	65	33	6	4	1.6
PXC3-65*45	65	45	6	4	1.5
PXC3-65*65	65	65	6	4	1.5
PXC3-80*25	80	25	6	4	1.6
PXC3-80*30	80	30	6	4	1.6
PXC3-80*35	80	35	6	4	1.7
PXC3-80*40	80	40	6	4	1.8
PXC3-80*45	80	45	6	4	1.8
PXC3-80*50	80	50	6	4	1.8
PXC3-80*60	80	60	6	4	1.8
PXC3-80*80	80	80	6	4	1.8
PXC3-80*100	80	100	6	4	1.9
PXC3-100*33	100	33	6	4	1.65
PXC3-100*40	100	40	6	4	1.7
PXC3-100*50	100	50	6	4	1.75
PXC3-100*60	100	60	6	4	1.9
PXC3-100*80	100	80	6	4	1.9
PXC3-100*100	100	100	6	4	2
