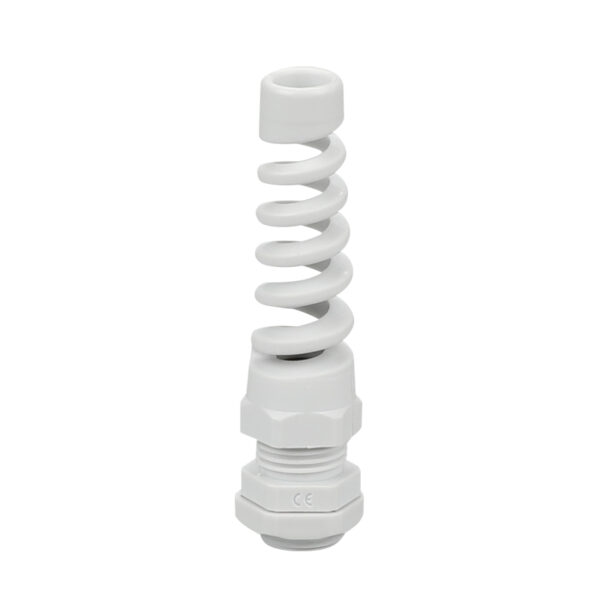

Nylon Sprial Cable Gland

Nylon Sprial Cable Gland

Thread: NPT, PG, M, PG-Long, M-Long
Material: NYLON 66 UL Listed, IP68
Sealing Nut: NBR, EPDM
Color: Black and other color available.
Use: Install from inside and outside of hole, and screw the sealing nut, to seal the hole.
Temperature: -40℃-100℃, the item can also endure 120℃ instantly
Application: sealing the electrical box connecter hole, wire install to inside and keep dusty and water out.

Category: Cable Glands

Description

Thread	ITEM NO.	CABLE RANGE INNER DIA	GL	H	SPANNER SIZE
Thread	ITEM NO.	MM	MM	MM	MM
NPT	NPT1/4	3-6.5	8	53	15
	NPT3/8	4-8	15	63	19
	NPT1/2	6.7-12	13	88	24
	NPT3/4	13-18	15	112	33
PG	PG7	3-6.5	8	53	15
	PG9	4-8	8.2	63	19
	PG11	5-10	8.6	78	22
	PG13.5	6.7-12	9	88	24
	PG16	10.2-14	10	98	27
	PG21	13-18	10	112	33
M	M12×1.5	3-6.5	8	53	15
	M12×1.5	4-8	8	63	19
	M16×1.5	4-8	8.2	63	19
	M16×1.5	5-10	8.6	78	22
	M20×1.5	6.7-12	9	88	24
	M20×1.5	10.2-14	10	88	27
	M25×1.5	13-18	10	112	33
PG-Long	PG7	3-6.5	15	53	15
	PG9	4-8	15	63	19
	PG11	5-10	15	78	22
	PG13.5	6.7-12	15	88	24
	PG16	10.2-14	15	98	27
	PG21	13-18	15	112	33
M-Long	M12×1.5	3-6.5	15	53	15
	M12×1.5	4-8	15	63	19
	M16×1.5	4-8	15	63	19
	M16×1.5	5-10	15	78	22
	M20×1.5	6.7-12	15	88	24
	M20×1.5	10.2-14	15	88	27
	M25×1.5	13-18	15	112	33
