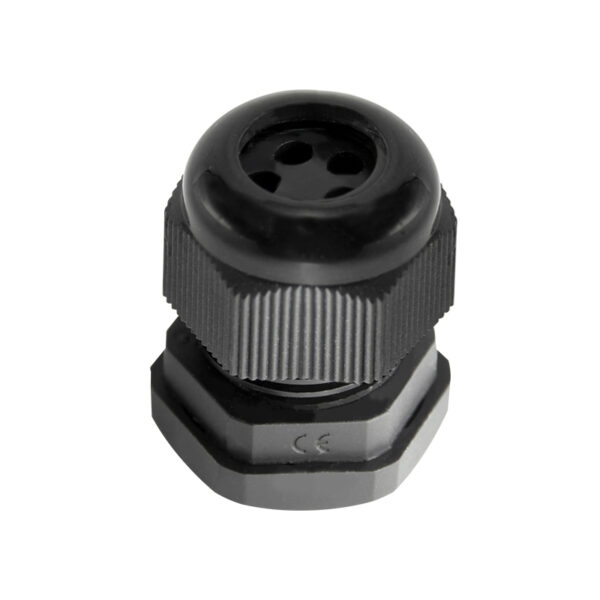

Nylon Cable Gland

Nylon Cable Gland

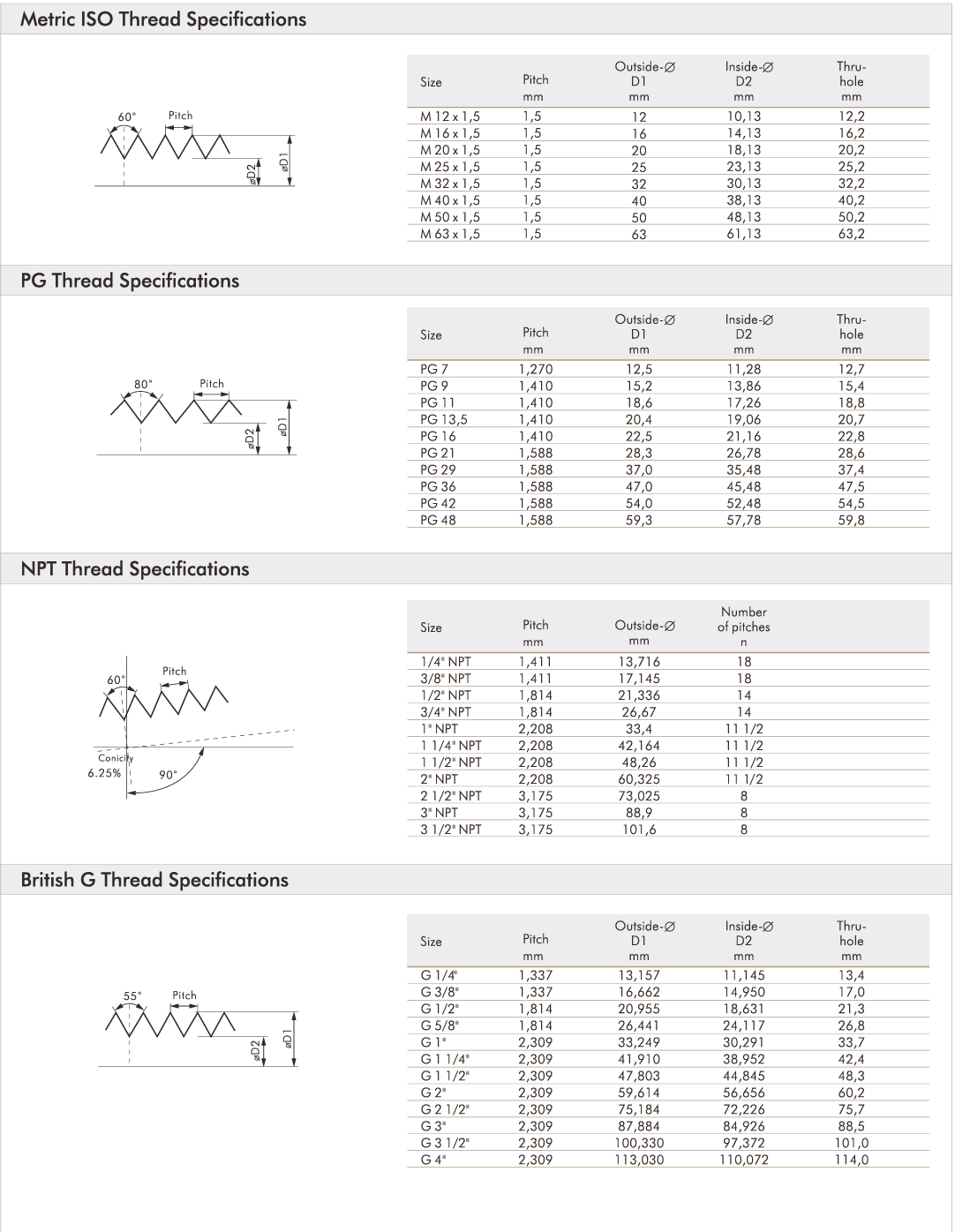

Thread: NPT, PG, M, PG-Long, M-Long
Material: NYLON 66 UL Listed, IP68
Sealing Nut: NBR, EPDM
Color: Black and other color available.
Use: Install from inside and outside of hole, and screw the sealing nut, to seal the hole.
Temperature: -40℃-100℃, the item can also endure 120℃ instantly
Application: sealing the electrical box connecter hole, wire install to inside and keep dusty and water out.

Category: Cable Glands

Description

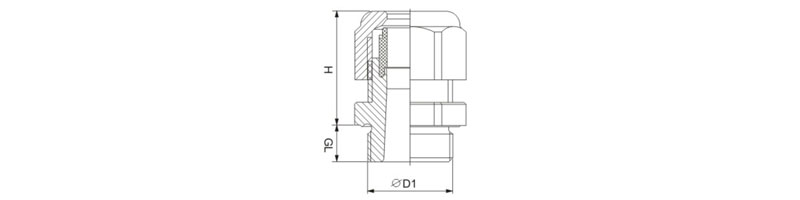

Thread	ITEM NO.	CABLE RANGE INNER DIA	GL	H	SPANNER SIZE
Thread	ITEM NO.	MM	MM	MM	MM
NPT	NPT1/4	3-6.5	8	22	15
	NPT3/8	4-8	15	24	19
	NPT1/2	6.7-12	13	27	24
	NPT3/4	13-18	15	35	33
	NPT1	18.5-25	16	40	42
	NPT1¼	18.5-25	18	40	42/46
	NPT1½	23-32	18	48	53
PG	PG7	3-6.5	8	22	15
	PG9	4-8	8.2	24	19
	PG11	5-10	8.6	26	22
	PG13.5	6.7-12	9	27	24
	PG16	10.2-14	10	29	27
	PG21	13-18	10	35	33
	PG29	18.5-25	12	40	42
	PG36	23-32	14	48	53
	PG42	32.7-38	14	50	60
	PG48	37-44	16.6	51	65
	PG63	42-50	28	71	82
M	M12×1.5	3-6.5	8	22	15
	M12×1.5	4-8	8	24	19
	M16×1.5	4-8	8.2	24	19
	M16×1.5	5-10	8.6	26	22
	M20×1.5	6.7-12	9	27	24
	M20×1.5	10.2-14	10	29	27
	M25×1.5	13-18	10	35	33
	M32×1.5	18.5-25	12	40	42
	M40×1.5	23-32	14	48	53
	M50×1.5	32.7-38	14	50	60
	M63×1.5	37-44	16.6	51	65/68
PG-Long	PG7	3-6.5	15	22	15
	PG9	4-8	15	24	19
	PG11	5-10	15	26	22
	PG13.5	6.7-12	15	27	24
	PG16	10.2-14	15	29	27
	PG21	13-18	15	35	33
	PG29	18.5-25	18	40	42
	PG36	23-32	18	48	53
	PG42	32.7-38	18	50	60
	PG48	37-44	19	51	65
	PG63	42-50	28	71	82
M-Long	M12×1.5	3-6.5	15	22	15
	M12×1.5	4-8	15	24	19
	M16×1.5	4-8	15	24	19
	M16×1.5	5-10	15	26	22
	M20×1.5	6.7-12	15	27	24
	M20×1.5	10.2-14	15	29	27
	M25×1.5	13-18	15	35	33
	M32×1.5	18.5-25	15	40	42
	M40×1.5	23-32	18	48	53
	M50×1.5	32.7-38	18	50	60
	M63×1.5	37-44	19	50	65/68
