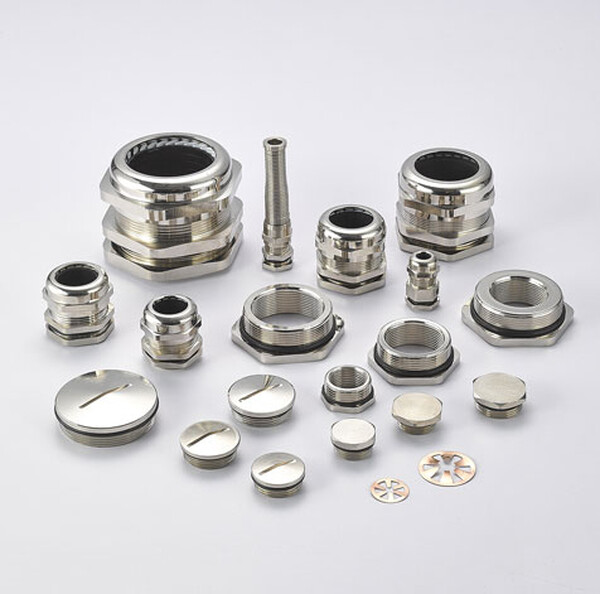

Brass Cable Glands

Brass Cable Glands

Thread: NPT, PG, M, PG-Long, M-Long
Material: Brass with nickel plated(CuZn39Pb3,ASTM C37800,JIS C37800)
Fixture Pack: NYLON 66 UL Listed, IP68.
Sealing Nut: NBR, EPDM.
Use: Install from inside and outside of the hole, and screw the sealing nut, to seal the hole.
Temperature: -40℃-100℃，the item can also endure 120℃ instantly.
Application: sealing the electrical box connecter hole, wire installs to inside and keep dust and water out.

Category: Cable Glands

Description

Thread	ITEM NO.	CABLE RANGE INNER DIA	GL	H	SPANNER SIZE
Thread	ITEM NO.	MM	MM	MM	MM
NPT	NPT1/4	3-6.5	8	18	14/15
	NPT3/8	4-8	15	20	17
	NPT1/2	6.7-12	13	22	22
	NPT3/4	13-18	15	25	30
	NPT1	18.5-25	19	30	40
	NPT1¼	18.5-25	16	31	40/44
	NPT1½	23-32	20	35	50
PG	PG7	3-6.5	15	18	14
	PG9	4-8	8.2	20	17
	PG11	5-10	8.6	21	20
	PG13.5	6.7-12	9	22	22
	PG16	10.2-14	10	23	24
	PG21	13-18	10	25	30
	PG29	18.5-25	12	30	40
	PG36	23-32	14	35	50
	PG42	32.7-38	14	38	57
	PG48	37-44	16.6	40	64
M	M12×1.5	3-6.5	15	18	14
	M12×1.5	4-8	8	20	17
	M16×1.5	4-8	8.2	20	17
	M16×1.5	5-10	8.6	21	20
	M20×1.5	6.7-12	9	22	22
	M20×1.5	10.2-14	10	23	24
	M25×1.5	13-18	10	25	30
	M32×1.5	18.5-25	12	30	40
	M40×1.5	23-32	14	35	50
	M50×1.5	32.7-38	14	38	57
	M63×1.5	37-44	16.6	40	64/68
PG-Long	PG7	3-6.5	15	18	14
	PG9	4-8	15	20	17
	PG11	5-10	15	21	20
	PG13.5	6.7-12	15	22	22
	PG16	10.2-14	15	23	24
	PG21	13-18	15	25	30
	PG29	18.5-25	18	30	40
	PG36	23-32	18	35	50
	PG42	32.7-38	18	38	57
	PG48	37-44	19	40	64
M-Long	M12×1.5	3-6.5	15	18	14
	M16×1.5	4-8	15	20	17
	M20×1.5	6.7-12	15	22	22
	M25×1.5	13-18	15	25	30
	M32×1.5	18.5-25	15	30	40
	M40×1.5	23-32	18	35	50
	M50×1.5	32.7-38	18	38	57
	M63×1.5	37-44	19	40	64/68
